Type:key button panel
Model:DX-UT125-90
Printing color:1 color
Printing plate size:100*225mm
Effective printing size: L60*W60mm or dia 80mm
Ink cup diameter:90mm
Silicone pad vertical printing stroke:150mm
Printing plate F/B stroke:125mm
Printing speed:2400 times/hr
Power:AC110/220V 50/60Hz 30W

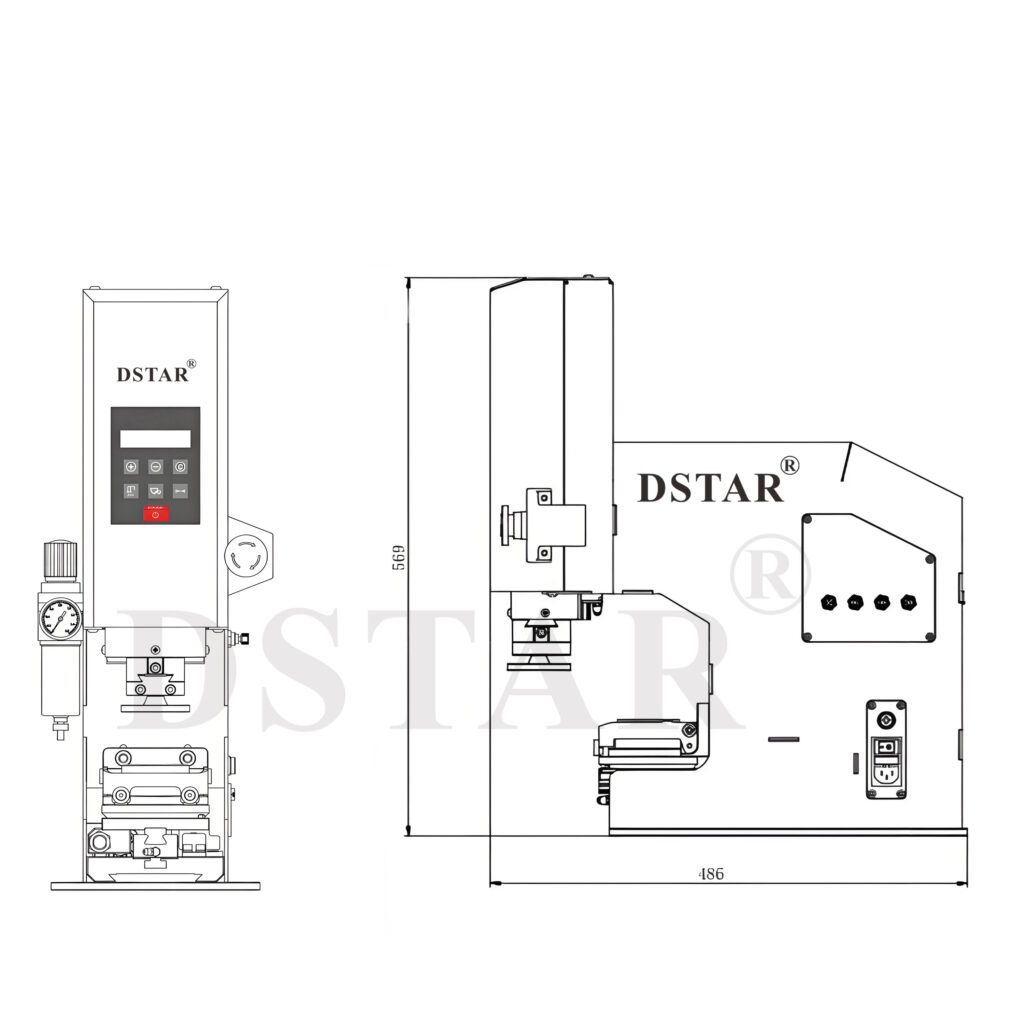

Machine size:L49*W21*H57cm
N.W:45KGS(Approx)
Model:DX-UT125-90
- DX is short for DSTAR company name
- U means Universal series machine
- T means Table type machine
- 125 means printing plate forward&backward move stroke 125mm
- 90mm means ink cup diameter size 90mm
Machine Video
DX-UT125-90 Working Machine

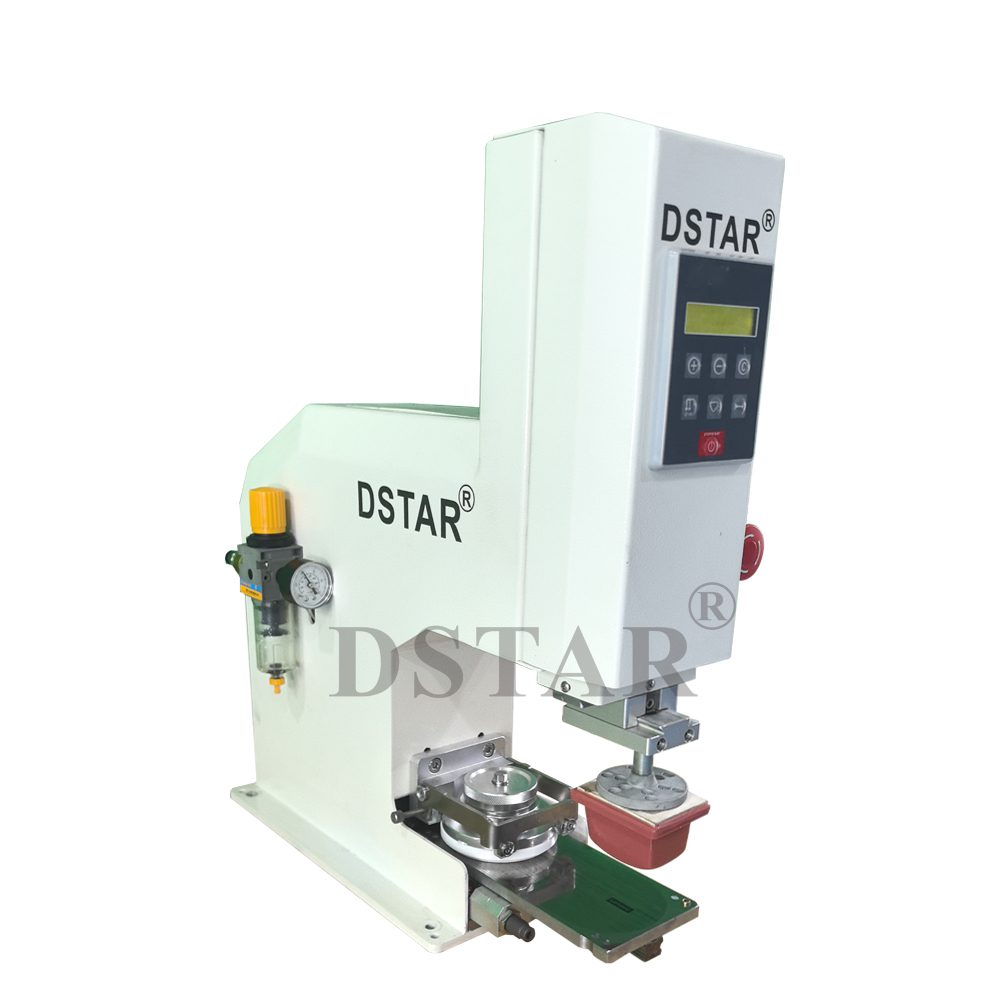

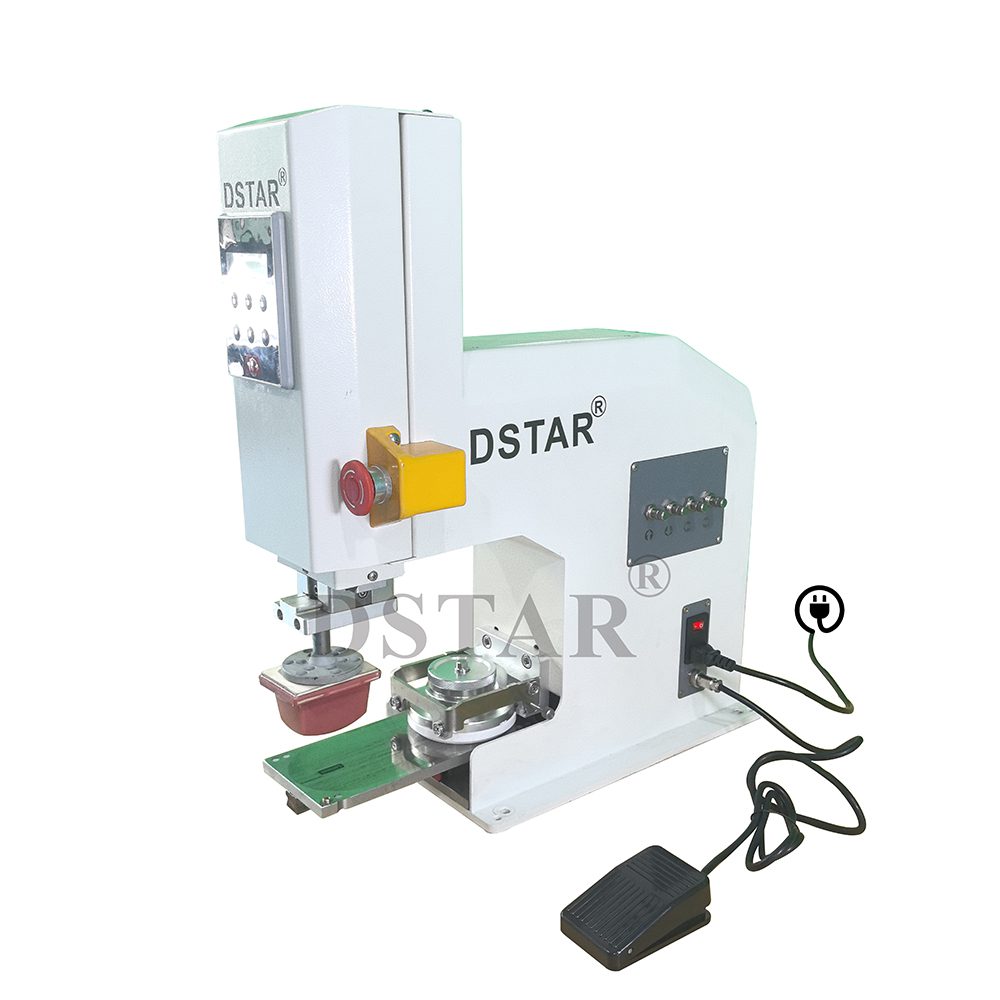

Machine Details Pictures
Machine Features
- -A high speed, user-friendly pad printer
- -Rigid aluminium casting machine frame
- -Pneumatic pad stroke
- -Use sealed ink cup set up
- -Dead-on printing plate registration for quick job change
- -Fast setup, snap-on plate change
- -Special functions: double ink/ print cycles, dwell and delay before print
- -European safety CE standard
- -High speed and smooth machine operations
Pad Printing Samples Display
Pad Printing Consumables
- 1.Silicone pad
- 2.Pad printing plate
- 3.Ink cup
- 4.Pad printing ink
- 5.Ink solvent
