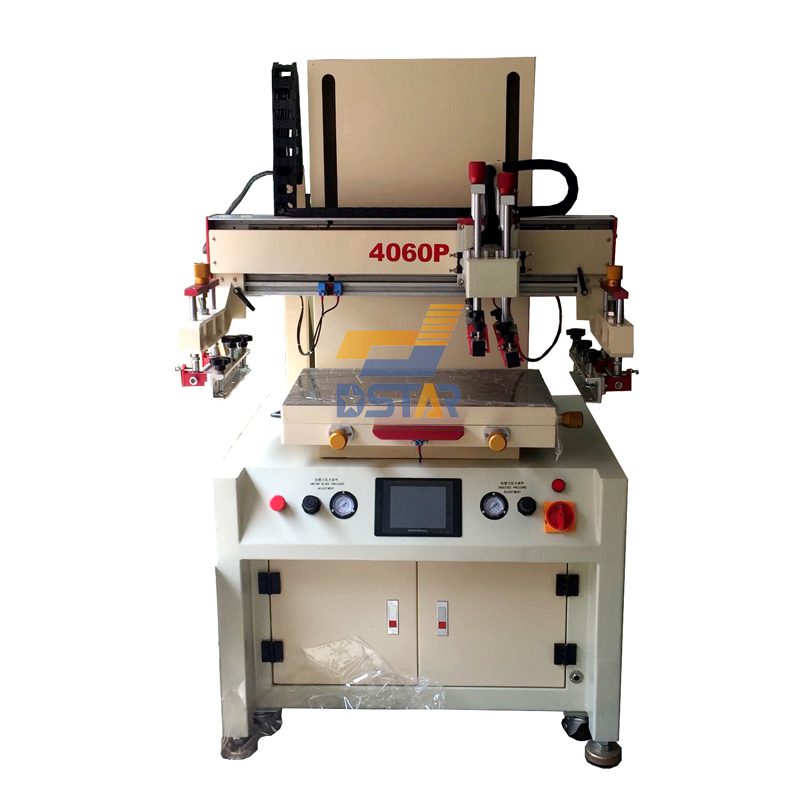

Cup Sleeve Screen Printing Machine
- Model:DX-4060P
- Worktable size:400*600mm
- Max screen plate frame size:55*83cm
- Max printing size:350*450mm
- Printing speed:880cycles/hr
- N.W:450KGS
- Power:AC220V/2.5KW
- Air consume:0.4-0.6Mpa
- Gross weight:450kgs
- Machine size:80*102*165cm
Machine Video
Machine Features
- 1.Vertical structure and electronic drive,PLC control system.
- 2.Cast aluminum processing for machine printing parts.
- 3.Machine speed and stroke can be adjusted under motor drive
- 4.There is manual test,single model and full automatic model for optional
- 5.automatic counter for printing
- 6.Independent machine lifting device.
- 7.It’s equipped with sliding block.screws on right and left arm to adjust screen plate position
- 8.The angle for ink printing and ink scraping can be adjusted.
Optional Function
- 1.modify from electronic drive to servo motor drive
- 2.automatic feeding or unloading device
- 3.vacuum work table
- 4.touch screen control panel
Printing Consumables
- 1.Screen printing plate
- 2.Printing Ink
- 3.Polyester Squeegee
