product:automatic screen printing machine
model:DX-S101-5
Brand:DSTAR
printing color:1 color or multi color
Printing size:
Cylinder ¢20-100mm Height 25-300mm
Oval W25-120mm Height 25-300mm
Speed:cylinder 4,000pcs/hr
oval 5,000pcs/hr
Voltage:AC380V 3Phase
Power:Machine(1.5KW) UV(5KW)/Unit
Air supply:0.6Mpa
Gas:0.15Mpa
Machine size:L1000*W100*H150cm
N.W:5000KGS

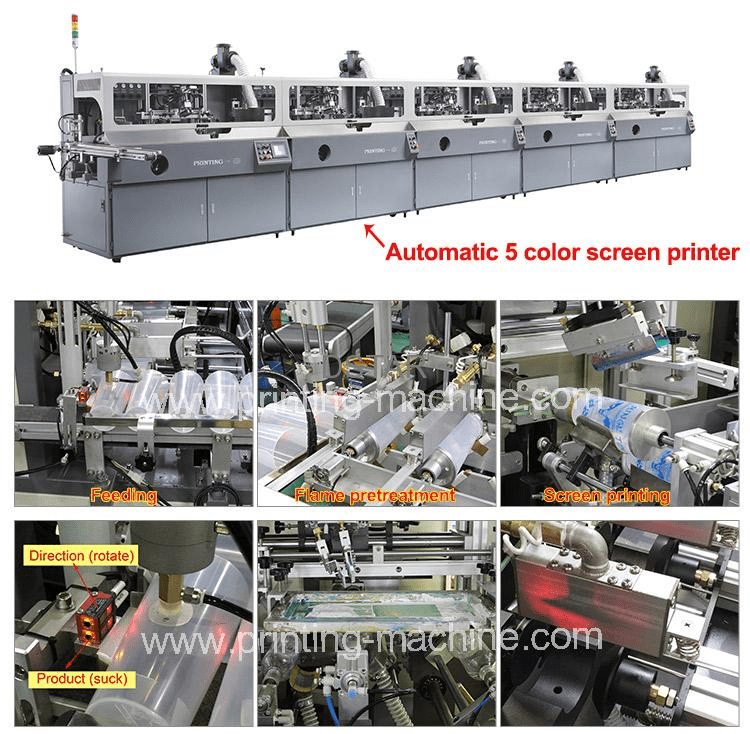

Machine Working:
1.Product feeding
2.Automaticly pick up to machine
3.Flame pretreatment on product surface (Such as PP/PE/HDPE material)
4.Automatic printing
5.Printing ink curing (UV curing or LEDUV curing)
6.Multi color processing like step 4 and step 5
7.Automatic unloading
Machine Features
- 1.automatic loading system
- 2.automatic flame treatment
- 3.UV curing system or LEDUV curing system
- 4.infinitely variable speed control system
- 5.non-printing without bottles
- 6.automatic pre contraposition system
- 7.widely used for printing different shape domestic bottle,medicine bottle,food packing container
- 8.the machine adopt with PLC system and advanced touch screen for smart operation
- 9.whole machine is combined with advanced motors and pneumatic parts to ensure infinitely variable speeds,automatic position matching,automatic feeding and non-printing without bottle
- 10.can be used for printing oval,cylinder and irregular shape bottle.Such as plastic,glass,metal and so on.
- 11.Multi color bottle printing machine can be divided to be independent single color printing machine.For example,DX-S101-5 can be divided to be 5 units single color printing machines.
Machine Application
- 1.Cosmetic bottles screen printing
- 2.Medicine bottles screen printing
- 3.Chemical bottles screen printing

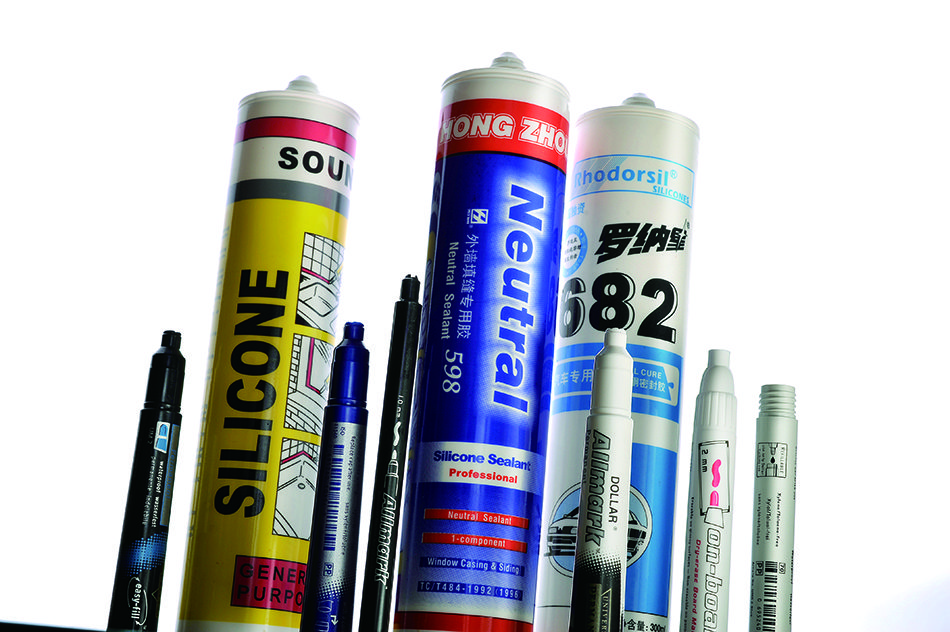

- 4.Sealant tube screen printing
- 5.Jerry can screen printing
- 6.Drinking bottle screen printing
- 7.Filer screen printing
- 8.Tea cup screen printing
Printing Consumables
- 1.Screen printing plate
- 2.Printing ink
- 3.Squeegee (ink scrapper)
- 4.Fixture

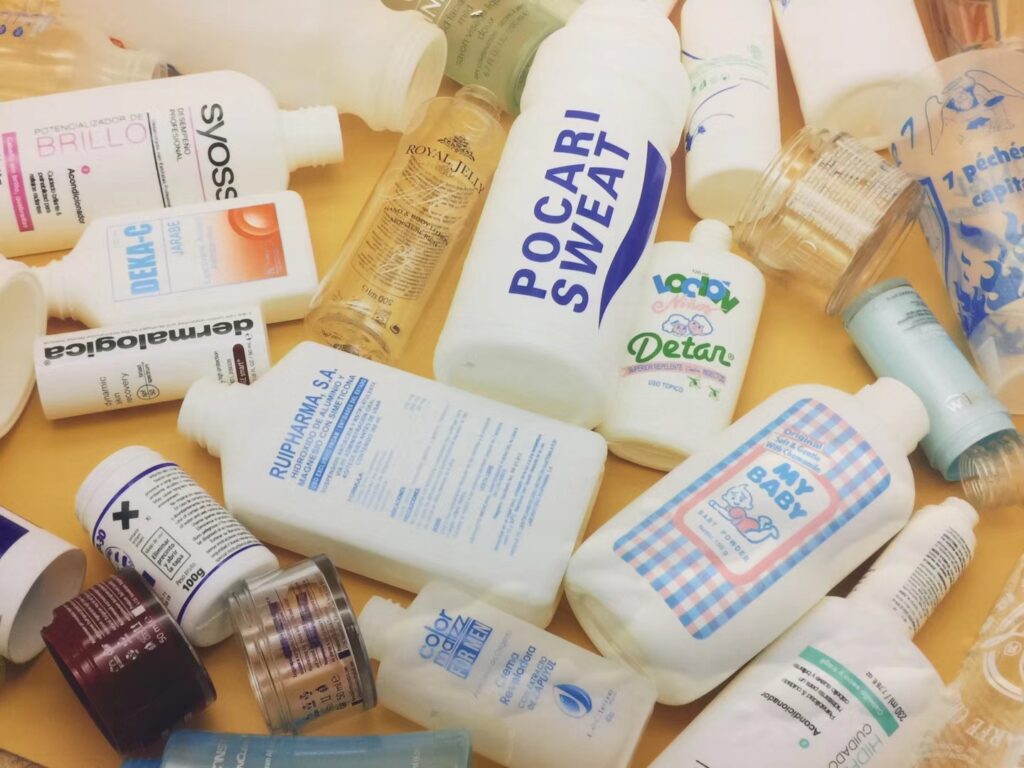

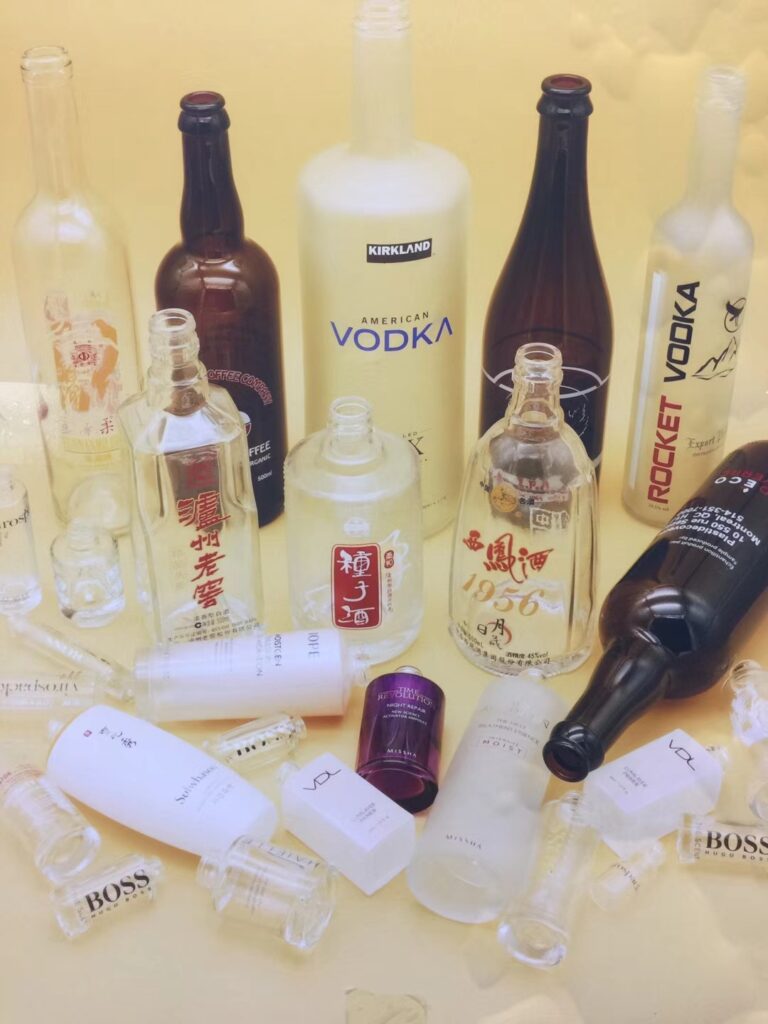

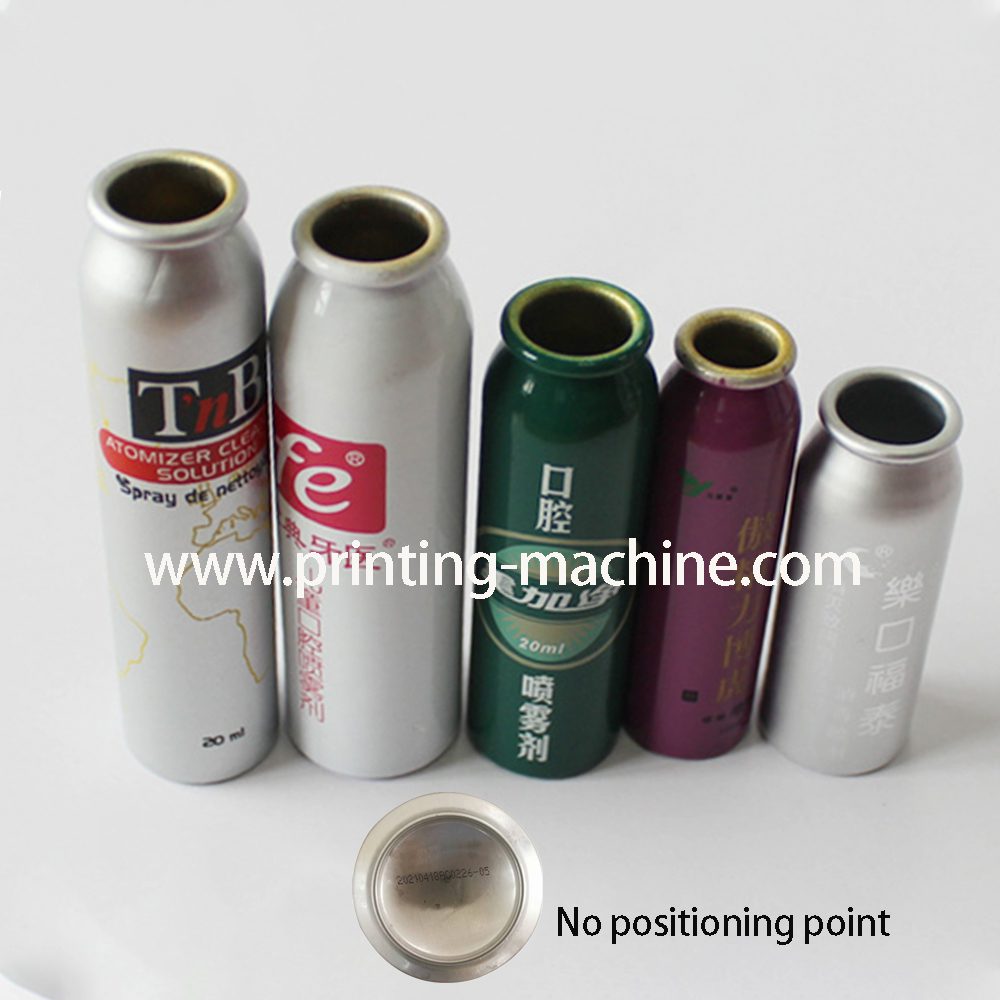

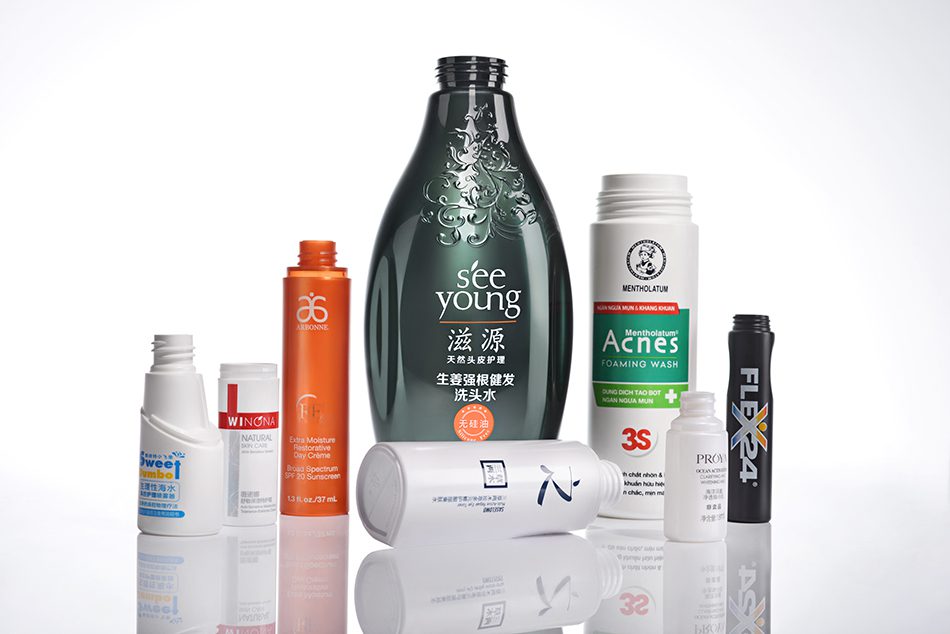

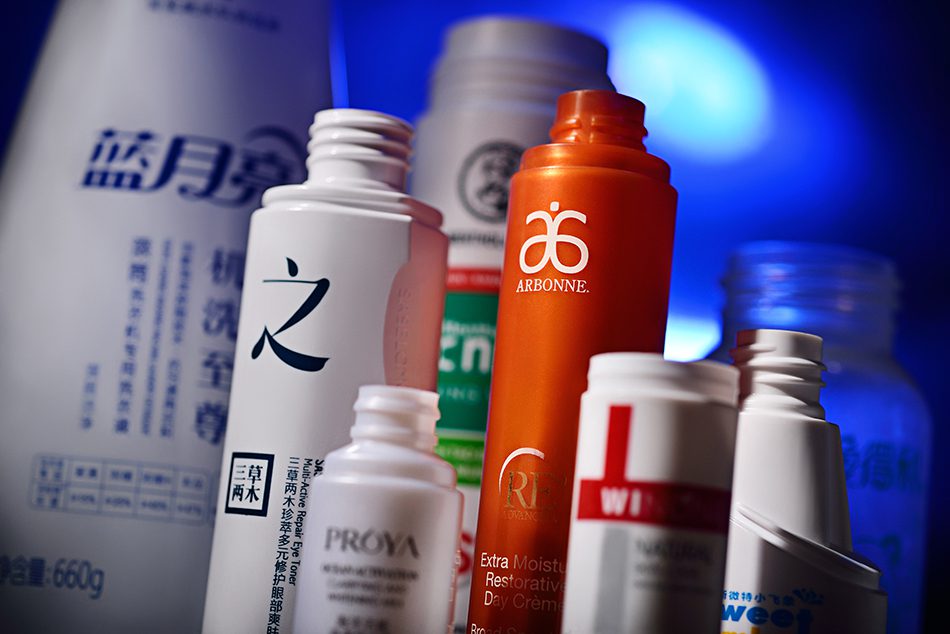

Samples Display
